CONTINUOUS DUTY / PRESTOLITE SYSTEM
OUR NO.
REFERENCE NO.

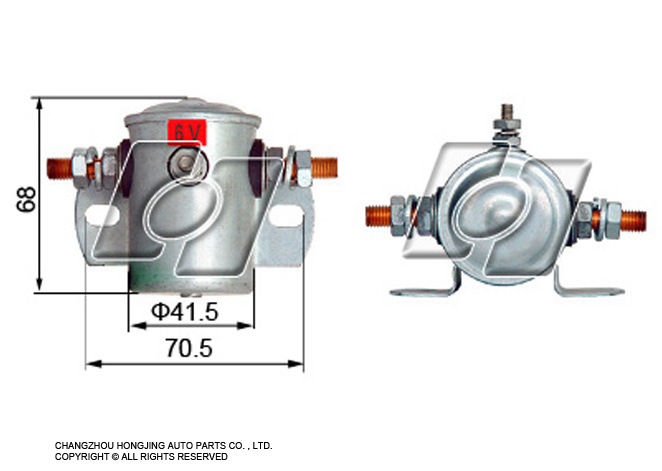

CD-003   6V, 3-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32





   Note:
    Grounded Base






OUR NO.
REFERENCE NO.

CD-003L   6V, 3-Terminal
 Delco:1468, 1503, 1539, 1570, 1114541  Dimensions:
  1116671   Contact Term: 5/16-24
 GM D929, D990   Switch Term: #10-32




 7-1036
   Note:
    Grounded Base






OUR NO.
REFERENCE NO.

CD-003Y   6V, 3-Terminal
 AMC/Jeep:120568  Dimensions:
 Case:A15802; Caterpillar:10093, 30037   Contact Term: 5/16-24
 Chrysler:633166, 648336, 658336, CH-2302   Switch Term: #10-32
 Cole Hersee:24039
 Delco:1452,1453,1114202,1114539,1114540
 Ford:SWG-1728, SWX-225
 Prestolite:15-28,15-31,15-125,15-129,15-160
  SAW-4601, SS-4001, SS-4002
  SS-4009S, SS-4017, SS-4018

 13863
 7-1037  Note:
    Grounded Base
 Lester Nos:
 3325, 3382, 3389, 3540, 3543, 3606, 3844,
 4011, 4014, 4018, 4019, 4027, 4028, 4031,
 4032




OUR NO.
REFERENCE NO.

CD-004   6V, 4-Terminal
 Cole Hersee:24097  Dimensions:
 Essex:70-108224-5   Contact Term: 5/16-24
 Prestolite:15-144, SAS-4601   Switch Term: #10-32
 United Technologies:SO-51170


 11886
 7-1018

   Note:
    1. Insulated Base
    2. Continuous Duty Solenoid





OUR NO.
REFERENCE NO.

CD-103   12V, 3-Terminal
 Case:A77311, 107655C1; Clark:1634120  Dimensions:
 Cole Hersee:24106   Contact Term: 5/16-24
 EsseX:70-111225-5   Switch Term: #10-32
 Harley Davidson:71580-75
 John Deere:AR-73144
 Prestolite:15-139, 15-296, 15-342, 15-345
  SAS-4208, SBC-4201, SBC-4201D

   Note:
 11887   1. Grounded Base
 7-1019   2. Continuous Duty Solenoid






OUR NO.
REFERENCE NO.

CD-103A   12V, 3-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32

 U66-1019


   Note:
    1. Grounded Base
    2. Continuous Duty Solenoid







OUR NO.
REFERENCE NO.

CD-103F   12V, 3-Terminal
 Caterpillar:62231  Dimensions:
 Chrysler:2240272   Contact Term: 5/16-24
 OMC:277609   Switch Term: #10-32
 Prestolite:15-163, SAW-4201T



 11850
 7-1002
   Note:
    Grounded Base






OUR NO.
REFERENCE NO.

CD-103P   12V, 3-Terminal
 Prestolite:15-79, 15-123, 15-134, 15-404  Dimensions:
  15-405, SAW-4201Y, SAW-4204   Contact Term: 5/16-24
  SAW-4210Y   Switch Term: #10-32





 11879  Note:
 7-1012   1. Grounded Base
    2. Push Button Contact






OUR NO.
REFERENCE NO.

CD-103Y   12V, 3-Terminal
 AMC/Jeep:919294  Dimensions:
 Catepillar:640034; Case:A40795, A57068   Contact Term: 5/16-24
 Chrysler:2095329, CH-2329, CH-2333   Switch Term: #10-32
 Cole Hersee:24020, 24044
 Delco:1450, 1454, 1114200, 1114207
 Ford:SWC-303, SWG-18, SWX-60, SWX-79
 Prestolite:15-2C, 15-8, 15-18, 15-404, 15-405
  SS-4003, SS-4031, A, S
  SAE-4005, SAS-4303, SAW-4201
   Note:
 7-1003   Grounded Base

 Lester Nos:
 3474, 3679, 3820, 3985, 3988, 4048, 4054
 4066, 4067, 4068, 4075, 4076, 4077, 4091



OUR NO.
REFERENCE NO.

CD-104   12V, 4-Terminal
 Allis Chalmers:4814761; Clark:992418  Dimensions:
 Cole Hersee:24059   Contact Term: 5/16-24
 Delco:1114208, 1114218, 1114223, 1114534   Switch Term: #10-32
 Essex:70-111221-5, 70-111224-5
 GM:U927, U934
 Prestolite:15-88, 15-132, 15-133, 15-236
  15-316, SAS-4201, SAS-4202,
  SAS-4213, SAS-5201A, SAS-5203,
  SAS-5203A  Note:
    1. Insulated Base
    2. Continuous Duty Solenoid
 11885
 7-1017




OUR NO.
REFERENCE NO.

CD-104A   12V, 4-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32



   Note:
    1. Insulated Base
    2. Contact Terminals In-laid with
 11880   Silver alloy
 7-1013   3. Continuous Duty Solenoid





OUR NO.
REFERENCE NO.

CD-104F   12V, 4-Terminal
 AMC/Jeep:3227812; Caterpillar:5L5886  Dimensions:
 Chrysler:1658883, 2095606, CH-2336   Contact Term: 5/16-24
 Cole Hersee:24023, 24047   Switch Term: #10-32
 Delco:1477,1486,1114206,1114537,1119828
 Ford:311006, SW-203, SW-220, SWX-72
 JohnDeere:AT-68973; Mack:2MR-358
 Mercury Marine:25661, 8761053, 8915857
 Prestolite:15-5C, 15-6, 15-66, 15-72, 14-137
  15-150, 15-274, 15-275, 15-295,
  15-340, SAE-4003M, SAS-4206,  Note:
  SAS-5202C, SAW-4206,   Insulated Base
  SAW-4221Y, SAW-5203


 14471
 7-1038



OUR NO.
REFERENCE NO.

CD-104Y   12V, 4-Terminal
 Clark:896553  Dimensions:
 Prestolite:15-148,15-132,SAE-4007,   Contact Term: 5/16-24
  SAW-4203, SAE-4007S, SAS-5202B   Switch Term: #10-32





 7-1011  Note:
    Insulated Base

 Lester Nos:
 5042, 5608



OUR NO.
REFERENCE NO.

CD-105   12V, 5-Terminal
 Cole Hersee:2440-1  Dimensions:
 John Deere:35906   Contact Term: 5/16-24
 Prestolite:15-301, 15-338, 15-341, SBD-4201   Switch Term: #10-32
  SBD-4201D




   Note:
 7-1051   1. Grounded Base
    2. Two Side-Contact Studs In-laid
    with Silver Alloy Contacts
    3. Continuous Duty Solenoid





OUR NO.
REFERENCE NO.

CD-1055   12V, 3-Terminal
 Cole Hersee:24030, 24046, 24077  Dimensions:
 Ford:59B-11450   Contact Term: 5/16-24
 Prestolite:577, 8-383   Switch Term: #10-32
 United Technologies:SO-51179
 Western:25634


 7-1055  Note:
    Insulated Base with Fully Plastic
    Coated Steel Housing






OUR NO.
REFERENCE NO.

CD-1056   12V, 4-Terminal
 AMC/Jeep:3227812; Caterpillar:5L5886  Dimensions:
 Chrysler:1658883, 2095606, CH-2336   Contact Term: 5/16-24
 Cole Hersee:24023, 24047   Switch Term: #10-32
 Delco:1477, 1486, 1114206, 1114537, 1119828
 Ford:311006, SW-203, SW-220, SWX-72
 JohnDeere:AT-68973; Mack:2MR-358
 Mercury Marine:25661, 8761053, 8915857
 Prestolite:15-5C, 15-6, 15-66, 15-72, 14-137  Note:
  15-150, 15-274, 15-275, 15-295,   Insulated Base with Fully Plastic
  15-340, SAE-4003M, SAS-4206,   Coated Steel Housing
  SAS-5202C, SAW-4206,
  SAW-4221Y, SAW-5203

 7-1056







OUR NO.
REFERENCE NO.

CD-1057   12V, 4-Terminal
 Allis Chalmers:4814761; Clark:992418  Dimensions:
 Cole Hersee:24059   Contact Term: 5/16-24
 Delco:1114208, 1114218, 1114223, 1114534   Switch Term: #10-32
 Essex:70-111221-5, 70-111224-5
 GM U927, U934
 Prestolite:15-88, 15-132, 15-133, 15-236
  15-316, SAS-4201, SAS-4202,
  SAS-4213, SAS-5201A, SAS-5203,  Note:
  SAS-5203A   1. Insulated Base
    2. Continuous Duty Solenoid

 7-1057





OUR NO.
REFERENCE NO.

CD-1058   24V, 4-Terminal
 Allis Chalmers:4814762  Dimensions:
 Clark:337670, 994278, 1613990, 1620555   Contact Term: 5/16-24
 Cole Hersee:24063   Switch Term: #10-32
 Essex:70-117224-5
 John Deere:AT-57170
 Prestolite:15-141, 15-196, 15-304, 15-310
  SAS-4401, SAS-4408,  Note:
  SAS-5401A, SAS-5401   1. Insulated Base
 United Technologies:SO-51181   2. Contact Terminals are Copper
    3. Continuous Duty Solenoid


 7-1058






OUR NO.
REFERENCE NO.

CD-1059   36V, 4-Terminal
 Baker:EP2136  Dimensions:
 Clark:1636581, X002255   Contact Term: 5/16-24
 Cole Hersee:24080   Switch Term: #10-32
 Essex:70-120221-5, 70-120224-5
 E-Z Go 11761GA
 Prestolite:15-242, 15-243, 15-334, SAS-4301
  SAS-4302, SAS-4303, SAS-5303A
   Note:
    1. Insulated Base
    2. Contact Terminals are Copper
    3. Continuous Duty Solenoid

 7-1059






OUR NO.
REFERENCE NO.

CD-105A   12V, 5-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32





   Note:
    1. Insulated Base
    2. Continuous Duty Solenoid
 Lester Nos:






OUR NO.
REFERENCE NO.

CD-106   12V, 6-Terminal
 Cole Hersee:24401  Dimensions:
 Essex:70-311224-5   Contact Term: 5/16-24
 Prestolite:15-323, 15-386, SBD-4201A   Switch Term: #10-32
 United Technologies SO-51189



   Note:
 7-1050   1. Insulated Base
    2. Two Side-Contact Studs In-laid
    with Silver Alloy Contacts
    3. Continuous Duty Solenoid





OUR NO.
REFERENCE NO.

CD-106A   12V, 6-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32




   Note:
    1. Grounded Base
    2. Continuous Duty Solenoid


 Lester Nos:






OUR NO.
REFERENCE NO.

CD-203   24V, 3-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32




   Note:
    1. Grounded Base
    2. Contact Terminals are Copper
    3. Continuous Duty Solenoid






OUR NO.
REFERENCE NO.

CD-203A   24V, 3-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32



   Note:
    1. Grounded Base
    2. Contact Terminals Inlaid with
    Silver alloy
    3. Continuous Duty Solenoid






OUR NO.
REFERENCE NO.

CD-204   24V, 4-Terminal
 Allis Chalmers:4814762  Dimensions:
 Clark:337670, 994278, 1613990, 1620555   Contact Term: 5/16-24
 Cole Hersee:24063   Switch Term: #10-32
 Essex:70-117224-5
 John Deere:AT-57170
 Prestolite:15-141, 15-196, 15-304, 15-310
  SAS-4401, SAS-4408,
  SAS-5401A, SS-5401  Note:
 United Technologies:SO-51181   1. Insulated Base
    2. Contact Terminals are Copper
    3. Continuous Duty Solenoid

 11888
 7-1020




OUR NO.
REFERENCE NO.

CD-204A   24V, 4-Terminal
   Dimensions:
    Contact Term: 5/16-24
    Switch Term: #10-32
 U66-1020



   Note:
    1. Insulated Base
    2. Contact Terminals In-laid with
    Silver alloy
    3. Continuous Duty Solenoid





OUR NO.
REFERENCE NO.

CD-206   24V, 6-Terminal
 Clark:13521  Dimensions:
 Cole Hersee:24402   Contact Term: 5/16-24
 Essex:70-317224-5   Switch Term: #10-32
 Prestolite:15-326, SBD-4401
 United Technologies:SO-51191



   Note:
    1. Insulated Base
    2. Two Side-Contact Studs In-laid
 7-1053   with Silver Alloy Contacts
    3. Continuous Duty Solenoid





OUR NO.
REFERENCE NO.

CD-304   36V, 4-Terminal
 Baker:EP2136  Dimensions:
 Clark:1636581, X002255   Contact Term: 5/16-24
 Cole Hersee:24080   Switch Term: #10-32
 Essex:70-120221-5, 70-120224-5
 E-Z Go 11761GA
 Prestolite:15-242, 15-243, 15-334, SAS-4301
  SAS-4302, SAS-4303, SAS-5303A
   Note:
    1. Insulated Base
 11889   2. Contact Terminals are Copper
 7-1021   3. Continuous Duty Solenoid






OUR NO.
REFERENCE NO.

CD-304A   36V, 4-Terminal
   Dimensions:
 7-1015   Contact Term: 5/16-24
    Switch Term: #10-32



   Note:
    1. Insulated Base
    2. Contact Terminals In-laid with
    Silver alloy
    3. Continuous Duty Solenoid





OUR NO.
REFERENCE NO.

CD-306   36V, 6-Terminal
 Cole Hersee:24400  Dimensions:
 Essex:70-320224-5   Contact Term: 5/16-24
 General Electric:178B8385   Switch Term: #10-32
 Navistar:57605-C1
 Prestolite:15-300, SBD-4301
 United Technologies:SO-51193

   Note:
 7-1054   1. Insulated Base
    2. Two Side-Contact Studs In-laid
    with Silver Alloy Contacts
    3. Continuous Duty Solenoid
