MI-101
12V, 3-Terminal
|
| |
| MD602074, MD602879, MD607549 |
Dimensions: |
| SB001, SB301A, SB321A, SB324, SB362, |
Battery Term: M8 x 1.25 |
| SB501F |
Motor Term: M8 x 1.25 |
| 23343-15815 |
Switch Term: M4 x 0.7 Hole |
| |
With Straight Spade |
| 7-760, 7-799, 7-821 |
|
| 66-8300, 66-8301, 66-8306 |
|
| ZM-690, ZM-691, ZM-10691 |
|
| |
|
| Starter Nos: |
Components: |
| |
MI-C101: Cap Assy |
| |
MI-A100: "M" & "B" Stud |
| Lester Nos: |
MI-M100L: Contact Assy |
| 16522, 16581, 16582, 16588, 16859, 17141, |
MI-W100: Contact, Copper |
| 16513 |
|
| |
Note: |
| |
Can be used as MI-131 |
| |
|
| |
|
|
|
|
MI-110
12V, 3-Terminal
|
| |
| SB002, SB171, SB172, SB341A, SB348, |
Dimensions: |
| SB541, SB541F, SB546, SB547, SB548F, |
Battery Term: M8 x 1.25 |
| SB550F, SB562 |
Motor Term: M8 x 1.25 |
| MD607412, MD602074 |

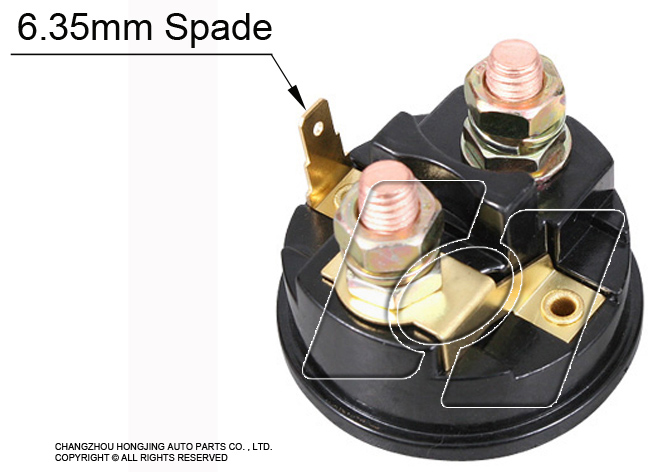

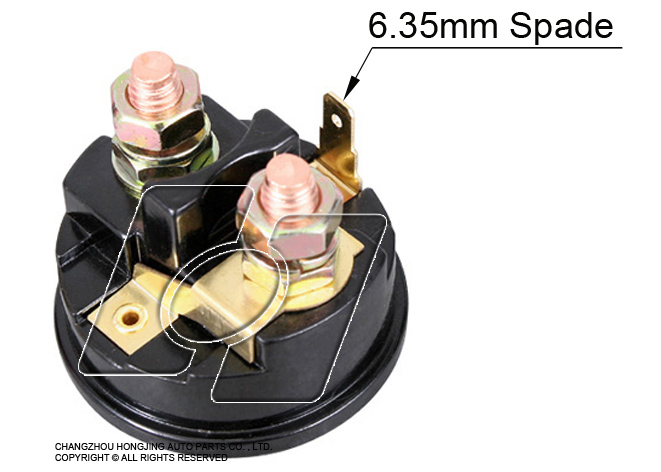

Switch Term: 6.35 mm Spade (RH) |
| Mazda:0324-24-760, 1757-24-760, K801-18-x10 |
|
| 0222-24-760A, 1758-24-736, 8872-24-736 |
|
| Nissan:23343-B5010, 23343-B5011 |
|
| |
|
| |
|
| 7-890 |
|
| 66-8302, 66-8307 |
|
| ZM-692, ZM-694 |
Components: |
| |
MI-C110: Cap Assy |
| Lester Nos: |
|
| 16203, 17173 , 16590 |
|
| |
|
| |
|
|
|
|
MI-111
12V, 3-Terminal
|
| |
| SB161, SB163, SB164, SB301, SB303, |
Dimensions: |
| SB304, SB329, SB330, SB501, SB502, |
Battery Term: M8 x 1.25 |
| SB530, SB530F, SB587F, SB588, SB592F, |
Motor Term: M8 x 1.25 |
| SB594F, SB806 |
Switch Term: 6.35 mm Spade (LH) |
| Nissan:23343-04E10, 23343-M8110, 23343-P0610, |
|
| 23343-T0111, 23343-Y0513 |
|
| Mazda:FE79-18-X10, KL06-18-X10, |
|
| 0222-24-760A, 1758-24-736A, 0222-24-760A |
|
| |
|
| |
|
| 7-760, 7-799, 7-821, 7-870 |
|
| 66-8300, 66-8306 |
|
| ZM-690, ZM-691, ZM-1-691 |
Components: |
| Lester Nos: |
MI-C111: Cap Assy |
| 16497, 16514, 16524, 16575, 16729, 16738, |
|
| 16780, 16815, 16816, 16935, 16982, 16983, |
|
| 16988, 16989, 17110, 17244, 17332, 17471 |
|
| |
|
| |
|
|
|
|
MI-121S
12V, 3-Terminal
|
| |
| SB-524 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 7-1102 |
Switch Term: Wire Lead Plug |
| 66-8356 |
|
| ZM-799 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M2T53882, 23300-84A11 |
|
| |
Components: |
| Lester Nos: |
MI-C121S: Cap Assy |
| 17178 |
WH-106M: Wire Lead Plug |
| |
|
| |
|
| |
|
|
|
|
MI-131
12V, 3-Terminal
|
| |
| M371X50671, SB506, MD607549 |
Dimensions: |
| 23343-R9000 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |

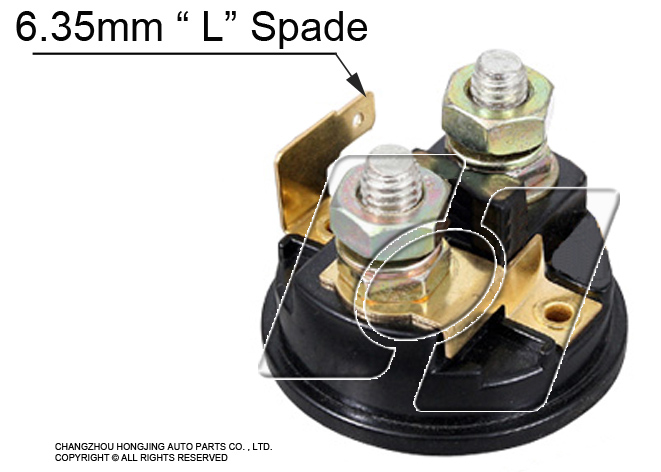

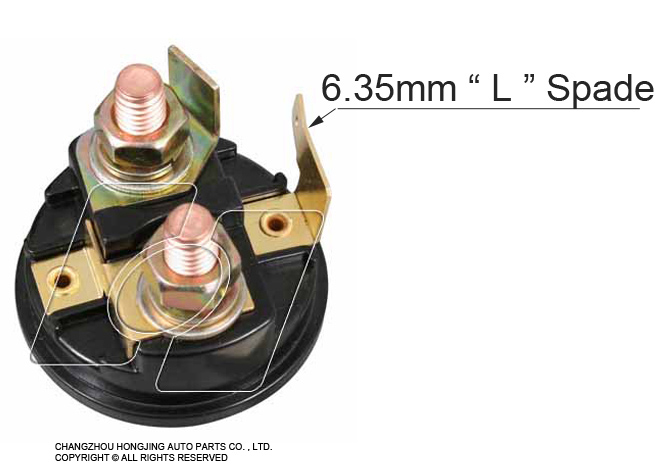

Switch Term: 6.35 mm "L" Spade |
| 7-821, 7-890 |
|
| ZM-896 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Lester Nos: |
Components: |
| 16514, 16720,16718, 16729, 16789, 16852, |
MI-C131: Cap Assy |
| 16861, 16862 |
|
| |
|
| |
|
| |
|
|
|
|
MI-132
12V, 3-Terminal
|
| |
| SB591 |
Dimensions: |
| 5213794 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M4 x 0.7 Post |
| 7-1103 |
|
| 66-8362 |
|
| ZM-1-797 |
|
| |
|
| |
|
| Starter Nos: |
|
| M3T10881 |
|
| |
Components: |
| Lester Nos: |
MI-C132: Cap Assy |
| 16792 |
|
| |
|
| |
|
| |
|
|
|
|
MI-140
12V, 4-Terminal
|
| |
| M371X33371, SB512F, SB533F |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 7-891 |
Switch Term: Male Spade |
| 66-8303 |
Relay Term: Lead w/ Female Spade |
| ZM-693 |
|
| |
|
| |
|
| Starter Nos: |
|
| |
Components: |
| |
MI-C140: Cap Assy |
| Lester Nos: |
|
| 16514, 16519, 16708, 16728, 16742 , |
|
| 16741, 16852, 16861 |
|
| |
|
| |
|
| |
|
|
|
|
MI-145
12V, 4-Terminal
|
| |
| SB513, SB513F, M371X51371 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 7-1101 |
Switch Term: 6.35 mm Spade |
| 66-8354 |
Relay Term: Round Female Pushon |
| ZM-796 |
with 210 mm Lead |
| |
|
| |
|
| Starter Nos: |
|
| M2T53086, M3T25885, MD085730 |
|
| |
Components: |
| |
MI-C145: Cap Assy |
| Lester Nos: |
|
| 16866, 16865 |
|
| |
|
| |
|
| |
|
|
|
|
MI-150
12V, 3-Terminal
|
| |
| SB001, SB002, SB018, SB018B |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 0823-24-736 |
Switch Term: 6.35 mm Spade |
| |
|
| 7-841 |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
|
| |
Components: |
| Lester Nos: |
MI-C150: Cap Assy |
| 16500 |
|
| |
|
| |
|
| |
|
|
|
|
MI-169
12V, 3-Terminal
|
| |
| M371X56971 |
Dimensions: |
| 10498715, 1998545 |

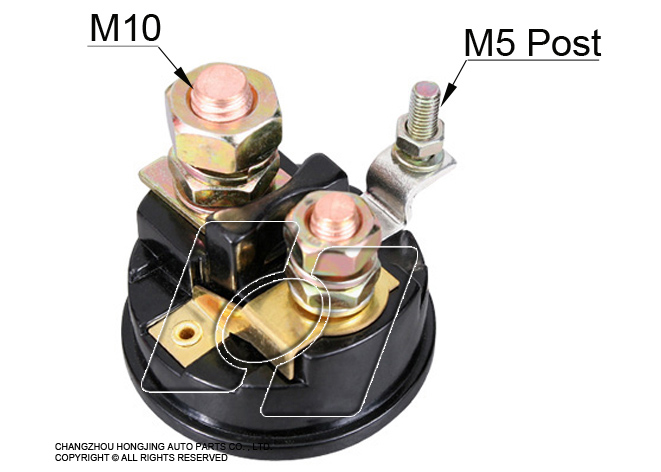

Battery Term: M10 x 1.5 |
| |
Motor Term: M8 x 1.25 |
| |

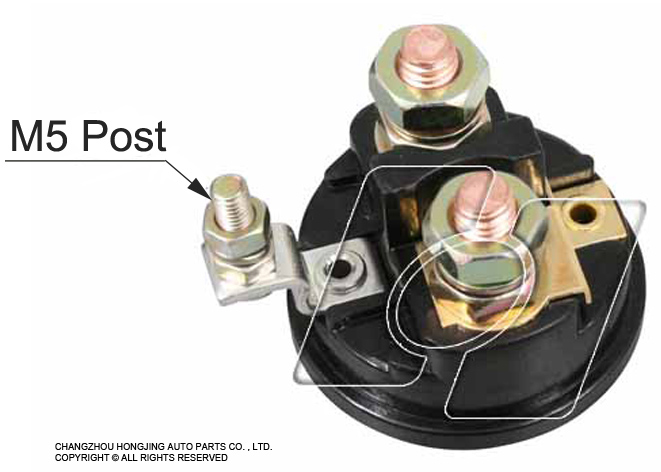

Switch Term: M5 x 0.8 Post |
| |
|
| 7-780 |
|
| 66-8313 |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
|
| Lester Nos: |
Components: |
| 16868 , 6430 |
MI-C169: Cap Assy |
| |
|
| |
|
| |
|
|
|
|
MI-170S
12V, 3-Terminal
|
| |
| M371X17771 |
Dimensions: |
| 23343-0M215, 23343-46L18, 23343-63J11 |
Battery Term: M8 x 1.25 |
| 23343-66J12 |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| 7-1143 |
|
| 66-8357 |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
Components: |
| Lester Nos: |
MI-C120S: Cap Assy |
| 17069 , 17426 |
WH-106: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-171S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
Components: |
| Lester Nos: |
MI-C121S: Cap Assy |
| |
WH-106: Wire Lead Plug |
| |
|
| |
|
| |
|
|
|
|
MI-172
12V, 3-Terminal
|
| |
| SB173 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| |
Components: |
| |
MI-C121: Cap Assy |
| |
WH-101: Wire Lead Plug |
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-172S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
Components: |
| |
MI-C120SXL: Cap Assy |
| Lester Nos: |
WH-106XL: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-173S
12V, 3-Terminal
|
| |
| 23343-30P10, 23343-30P17 |
Dimensions: |
| SB154 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| 7-1145 |
|
| 66-8355 |
|
| |
|
| |
|
| Starter Nos: |
|
| M2T25281, M2T25282 |
|
| |
|
| |
Components: |
| Lester Nos: |
MI-C121SXL: Cap Assy |
| 17179 |
WH-106XL: Wire Lead Plug |
| |
|
| |
|
| |
|
|
|
|
MI-191
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M4 x 0.7 Hole |
| |
With Straight Spade |
| |
|
| |
Components: |
| Starter Nos: |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-200S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Mazda:N3H2-18-400A |
Components: |
| |
MI-C220AS: Cap Assy |
| Lester Nos: |
WH-106M: Wire Lead Plug |
| 17196 |
|
| |
|
| |
|
| |
|
|
|
|
MI-201S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| Starter Nos: |
|
| Mitsubishi:M0T20771ZC |
|
| Nissan:23300-8Y000 |
|
| |
|
| |
Components: |
| |
MI-C221AS: Cap Assy |
| Lester Nos: |
WH-106L: Wire Lead Plug |
| 17872 |
|
| |
|
| |
|
| |
|
|
|
|
MI-210
12V, 3-Terminal
|
| |
| M371X64171, M371X64273, M371X64971 |
Dimensions: |
| M371X65071, M371X66271 |
Battery Term: M8 x 1.25 |
| MD611040, MD611591. SB641, SB642, |
Motor Term: M8 x 1.25 |
| SB642M, SB648, SB649, SB662 |
Switch Term: 6.35 mm Spade |
| Nissan:23343-M8210, 23343-T5001 |
|
| |
|
| 7-863 |
|
| 66-8327 |
|
| ZM-1-698 |
|
| |
|
| |
|
| Lester Nos: |
Components: |
| 16579, 16732, 16930, 16931, 16932, 17131, |
MI-C201: Cap Assy |
| 17133, 17151, 17221, 17312, 17470, 17599, |
MI-A200: "M" & "B" Stud |
| 17686, 16988, 17167, 17174, 17175, 17220, |
MI-P200: Plunger Assy |
| 17446, 17447, 17448, 17511, 17512, 17513, |
MI-M200S: Contact Assy |
| 17541, 17543, 17568 |
|
| |
|
| |
|
|
|
|
MI-210A
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
|
| |
Components: |
| |
MI-C210A: Cap Assy (Tall) |
| Lester Nos: |
MI-M200L: Contact Assy |
| 17133, 17847, 17862, 17866, 17933, 17937, |
|
| 17938, 17939, 17541, 17848, 17911 |
|
| |
|
| |
|
|
|
|
MI-210AG
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
|
| |
Components: |
| |
MI-C210G: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| Lester Nos: |
|
| 17556, 17557 |
|
| |
|
| |
|
| |
|
|
|
|
MI-211
12V, 3-Terminal
|
| |
| M371X60171, M371X62171, M371X62271 |
Dimensions: |
| M371X62371, M371X62471, M371X62871, |
Battery Term: M8 x 1.25 |
| MD607889, MD618728, SB601, SB621, |
Motor Term: M8 x 1.25 |
| SB622, SB623,SB624, SB-626, SB628, |
Switch Term: 6.35 mm Spade |
| SB630, U2730, U2835 |
|
| Mazda:AM15-18-X10, E356-18-X10, |
|
| FE1J-18-X10 |
|
| Nissan:23343-M8011, 23343-AA000, 23343-AA090 |
|
| 7-862 |
|
| 66-8326 |
|
| ZM-697, ZM-699, ZM-1-699, ZM-2-699, |
Components: |
| ZM-4-699 |
MI-C211: Cap Assy |
| Lester Nos: |
MI-M200S: Contact Assy |
| 16774, 16775, 16791, 16793, 16798, 16888, |
|
| 16889, 16922, 16933, 16966, 16971, 16998, |
|
| 17010, 17057, 17142, 17166, 17176, 17181, |
|
| 17206, 17248, 17266, 17437, 17480, 17684, |
|
| 17704, 17719, 17745, 18162 |
|
| |
|
| |
|
|
|
|
MI-211A
12V, 3-Terminal
|
| |
| GM:96058474 |
Dimensions: |
| Subaru:23343-KA100, 23343-KA150 |
Battery Term: M8 x 1.25 |
| Suzuki:31220-83020, 31220-83030, 31220-86030 |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| Starter Nos: |
|
| Chrysler:56041579AB, 56041914AC, 56041641AD |
|
| Hyundai:36100-22800, 36100-38090, |
|
| 36100-22805 |
|
| Mando:M60082, M0T84882ZC, M0T20171, |
Components: |
| M2T88372ZC, M0T20672ZC, M0T30672ZC, |
MI-C211A: Cap Assy (Tall) |
| M0T20272ZC |
MI-M200L: Contact Assy |
| |
|
| Lester Nos: |
|
| 17132, 17194, 17704, 17708, 17709, 17717, |
|
| 17826, 17827, 17840, 17849, 17873, 17931, |
|
| 17940, 18395, 18396, 17783, 17874, 17882 |
|
| |
|
| |
|
|
|
|
MI-211AG
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| Starter Nos: |
|
| M0T80783ZC, M0T80784ZC |
|
| MD351508, MD363633 |
|
| |
|
| |
|
| Lester Nos: |
Components: |
| 17795 |
MI-C211AG: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| |
|
| |
|
| |
|
|
|
|
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade in |
| |
Socket (RH) |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Honda:31200-RAA-A01, |
|
| 31200-RAA-A010-M3 |
Components: |
| Mitsubishi:M0T20371ZC |
MI-C213: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| Lester Nos: |
|
| 17869 |
Note: |
| |
MI-213 Reversed "S" of MI-219 |
| |
|
| |
|
| |
|
|
|
|
MI-214G
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Hyundai:36100-37110 |
|
| Mando:M62956, M62957 |
|
| |
|
| |
Components: |
| |
MI-C211AG: Cap Assy (Tall) |
| Lester Nos: |
MI-M200L: Contact Assy |
| 17763, 17764 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Terminal: Spade in Socket |
| |
|
| |
Components: |
| Starter Nos: |
MI-C215: Cap Assy (Tall) |
| Acura 31200-RJA-A02 |
MI-B227: Extention "B" Terminal |
| |
MI-M200L: Contact Assy |
| |
|
| Lester Nos: |
|
| 17915 |
|
| |
|
| |
|
|
|
|
MI-217
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M1T84281, M0T81381 |
|
| Subaru:23300-AA361 |
Components: |
| |
MI-C217: Cap Assy (Tall) |
| |
MI-B227: Extention "B" Terminal |
| Lester Nos: |
MI-M200L: Contact Assy |
| 17722, 17718 |
|
| |
Note: |
| |
MI-217 Reversed "S" of MI-218 |
| |
|
| |
|
| |
|
|
|
|
MI-218
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Components: |
| Starter Nos: |
MI-C218: Cap Assy (Tall) |
| M1T86182 |
MI-B227: Extention "B" Terminal |
| GM:30026097, Suziuki:31100-67DA0 |
MI-M200L: Contact Assy |
| |
|
| |
Note: |
| Lester Nos: |
MI-218 Reversed "S" of MI-217 |
| 17838 |
|
| |
|
| |
|
| |
|
|
|
|
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade in |
| |
Socket (LH) |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Acura:31200-RDJ-A01, 31200-RDJ-A02 |
|
| Mitsubishi:M0T15072ZC |
Components: |
| |
MI-C219: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| Lester Nos: |
|
| 17868 |
Note: |
| |
MI-219 Reversed "S" of MI-213 |
| |
|
| |
|
| |
|
|
|
|
MI-220
12V, 3-Terminal
|
| |
| M371X78371, M371X92575, SB663, SB783 |
Dimensions: |
| Nissan:23343-60U10, 23343-22P10, |
Battery Term: M8 x 1.25 |
| 23343-22P70 |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| 66-8347 |
|
| 7-1100 |
|
| ZM-794 |
|
| |
|
| Starter Nos: |
|
| M1T60281, M1T60285, M1T60286 |
Components: |
| Nissan:23300-60U10, 23300-86G10 |
MI-C220: Cap Assy |
| |
MI-M200S: Contact Assy |
| |
WH-101M: Wire Lead Plug |
| Lester Nos: |
|
| 17425 |
|
| |
|
| |
|
| |
|
|
|
|
MI-220A
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
Components: |
| |
MI-C220A: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| |
WH-101M: Wire Lead Plug |
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-220AS
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| F5XY-11002-A, XF52-11000-AA, XF5Z-11002-AA |
Components: |
| Mitsubishi:M0T87381ZC, M2T85571ZC |
MI-C220AS: Cap Assy (Tall) |
| Nissan:23300-9Z400, 23300-7S00 |
MI-M200L: Contact Assy |
| |
WH-106M: Wire Lead Plug |
| |
|
| |
|
| Lester Nos: |
|
| 17767 (old), 17479, 17861, 17867 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-220S
12V, 3-Terminal
|
| |
| M371X76275, M371X76371, SB691, SB784P |
Dimensions: |
| Nissan:23343-30R13 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| 66-8346 |
|
| ZM-793, ZM-4-793 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M1T72281, M1T72985 |
Components: |
| Nissan:23300-30R13 |
MI-C220S: Cap Assy |
| |
MI-M200S: Contact Assy |
| |
WH-106M: Wire Lead Plug |
| Lester Nos: |
|
| 17246, 17685 ,17186, 17245 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-221
12V, 3-Terminal
|
| |
| M371X68771, M371X68971, SB687, SB689 |
Dimensions: |
| Nissan:23343-33P71, 23343-57M70, |
Battery Term: M8 x 1.25 |
| 23343-57M75 |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| 66-8328 |
|
| 7-785 |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
Components: |
| |
MI-C221: Cap Assy |
| |
MI-M200S: Contact Assy |
| Lester Nos: |
WH-101M: Wire Lead Plug |
| 16874, 16900 |
|
| |
|
| |
|
| |
|
|
|
|
MI-221A
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
Components: |
| |
MI-C221A: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| |
WH-101M: Wire Lead Plug |
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-221AS
12V, 3-Terminal
|
| |
| M357X00271, M371X76871 |
Dimensions: |
| Ford:F4XY-11390-A, SWE5005 |
Battery Term: M8 x 1.25 |
| Nissan:23343-0B710, 23343-0M210 |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| 66-8349, 66-8370 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M1T72085, M1T64285, M0T80281ZC, |
Components: |
| M2T43283ZC |
MI-C221AS: Cap Assy (Tall) |
| F4XY-11002-A, F4XY-11002-A, |
MI-M200L: Contact Assy |
| F4XA-11000-BA |
WH-106M: Wire Lead Plug |
| Nissan:23300-0B711, 23300-02M10, |
|
| 23300-0M211, 23000-0M215 |
|
| |
|
| Lester Nos: |
|
| 17146, 17479, 17580, 17685, 17688 |
|
| |
|
| |
|
|
|
|
MI-221F
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| Starter Nos: |
|
| M0T87281ZC, M0T87187ZC |
|
| Nissan:23300-5Y715, 23300-8J115, |
Components: |
| 23300-8J120 |
MI-C221AS: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| Lester Nos: |
WH-106F: Wire Lead Plug |
| 17830, 17831 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-221GF
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M0T50371 |
Components: |
| Nissan:23300-4W015 |
MI-C221AS: Cap Assy (Tall) |
| |
MI-M200L: Contact Assy |
| |
WH-106F: Wire Lead Plug |
| Lester Nos: |
|
| 17834 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-221S
12V, 3-Terminal
|
| |
| M371X64771, M375X00271 |
Dimensions: |
| Nissan:23343-84A17 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| 66-8349 |
|
| 7-710 |
Components: |
| ZM-792, ZM-4-792 |
MI-C221S: Cap Assy |
| |
MI-M200S: Contact Assy |
| Starter Nos: |
WH-106M: Wire Lead Plug |
| M1T72085, M1T72086, M1T72086A, |
|
| M1T72087 |
|
| |
|
| Lester Nos: |
|
| 17153 (Old), 17154 (Old), 17146, 17147 |
|
| |
|
| |
|
| |
|
|
|
|
MI-226S
12V, 3-Terminal
|
| |
| M371X76471, M371X92475 |
Dimensions: |
| 23343-1E410, 23343-4E100 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| 7-1144 |
|
| 66-8368 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Components: |
| Starter Nos: |
MI-C226AS: Cap Assy (Tall) |
| M1T73881, M1T73881ZC |
MI-M200L: Contact Assy |
| Nissan:23300-1E410, 23300-4E100 |
MI-B226: Extention "B" Terminal |
| |
WH-106M: Wire Lead Plug |
| |
|
| Lester Nos: |
|
| 17477, 17478 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-227S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug (RH) |
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
Components: |
| M2T84671 |
MI-C227S: Cap Assy (Tall Cap) |
| Nissan:23300-6P010 |
MI-M200L: Contact Assy |
| |
MI-B227: Extention "B" Terminal |
| |
WH-106M: Wire Lead Plug |
| Lester Nos: |
|
| 17739 |
|
| |
|
| |
|
| |
|
|
|
|
MI-228F
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug (LH) |
| |
|
| |
|
| |
|
| Starter Nos: |
Components: |
| M2T84671 |
MI-C228F: Cap Assy (Tall Cap) |
| Nissan:23300-6P010 |
MI-M200L: Contact Assy |
| |
MI-B227: Extention "B" Terminal |
| |
WH-106F: Wire Lead Plug |
| |
|
| Lester Nos: |
|
| 17864 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |

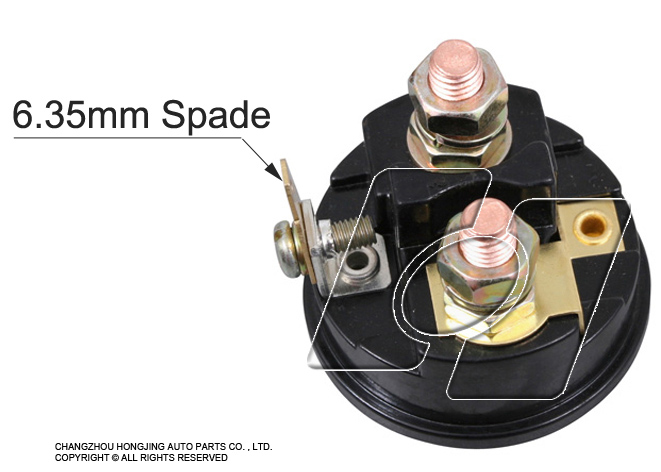

Switch Term: 6.35mm Spade |
| |
|
| Starter Nos: |
Components: |
| Ford:3M81-11002-BB |
MI-C229: Cap Assy (Tall Cap) |
| Mitsuboshi:M0T87681, M0T87781ZC, M0T90981 |
MI-C229X: MI-C229 Without MI-B229 |
| Mazda:L321-18-400, L327-18-400, L813-18-4004 |
MI-M200L: Contact Assy |
| |
MI-B229: Extention "B" Terminal |
| |
|
| Lester Nos: |
|
| 17908, 17909, 17914 |
|
| |
|
| |
|
| |
|
|
|
|
MI-230
12V, 3-Terminal
|
| |
| Ford:F32Z-11390-A, SWE-2357 |
Dimensions: |
| Mazda:FS05-18-X10 |
Battery Term: M8 x 1.25 |
| Nissan:23343-42L10 |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm "L" Spade |
| 66-8377 |
|
| |
|
| |
|
| Starter Nos: |
|
| Ford:F32Z-11002-A |
|
| Mazda:FS05-18-400, FS11-18-400, FS11-18-400A, |
|
| FS11-18-400B |
|
| Mitsubishi:M1T77381, M2T44781, |
Components: |
| M3T44081, MD301348, MD301350 |
MI-C230: Cap Assy |
| |
|
| Lester Nos: |
|
| 17469, 17684, 17507, 17539, 17732, 17733 |
|
| |
|
| |
|
|
|
|
MI-230A
12V, 3-Terminal
|
| |
| Ford:F32Z-11390-A, SWE-2357 |
Dimensions: |
| Mazda:FS05-18-X10 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm "L" Spade |
| 66-8377 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Ford:F32Z-11002-A, SAE-804 |
|
| MD332022, MD356104, MD360368, |
|
| MD362207, MD377649, MD301348 |
Components: |
| M0T81281, M0T81283, M0T81284, |
MI-C230A: Cap Assy |
| M0T85981 |
|
| |
|
| |
|
| Lester Nos: |
|
| 17469, 17732, 17733, 17539, 17905 |
|
| |
|
|
|
|
MI-230G
12V, 3-Terminal
|
| |
| M371X64271, M371X64273, M371X64471 |
Dimensions: |
| M371X74471, MD611591, SB642, SB644, |
Battery Term: M8 x 1.25 |
| SB744 |
Motor Term: M8 x 1.25 |
| Mazda:N326-18-x10 |
Switch Term: 6.35 mm "L" Spade |
| Nissan:23343-M8210 |
|
| |
|
| 66-8327 |
|
| ZM-698, ZM-4-698 |
|
| |
|
| Starter Nos: |
|
| M1T70781, M1T70881, M1T71381, |
|
| M1T71781, M1T73281, M1T74181, |
|
| M1T27781 |
Components: |
| Hyundai:36100-35900 |
MI-C230G: Cap Assy |
| |
Tall Cap |
| Lester Nos: |
|
| 16932, 17221, 17557, 17810 |
|
| |
|
| |
|
| |
|
|
|
|
MI-231
12V, 3-Terminal
|
| |
| M371X60271, M371X69171, MD607997, MD618581, |
Dimensions: |
| MD618613, MD618728 |
Battery Term: M8 x 1.25 |
| SB602, SB603, SB691, Nissan:23343-30R11 |
Motor Term: M8 x 1.25 |
| Chrysler:36210-11130, 36210-11140; |
Switch Term: 6.35 mm "L" Spade |
| Hyundai:36210-32510 |
|
| 7-862 |
|
| 66-8330 |
|
| ZM-790, ZM-791 |
|
| |
|
| |
|
| Starter Nos: |
|
| M002T40081, M003T32592, M1T60381, |
|
| M3T32581 |
Components: |
| M1T75981, MD178511, MD001333, |
MI-C231: Cap Assy |
| MD016920 |
|
| Nissan:23300-K9160 |
|
| Hyudai:36100-21770; |
|
| Mando:M39378, MC109032 |
|
| |
|
| Lester Nos: |
|
| 16514, 16939, 16940, 16729, 16789, 17212, |
|
| 17288, 17437, 17451, 17472, 17499, 17500, |
|
| 17501, 17662 |
|
| |
|
| |
|
|
|
|
MI-231A
12V, 3-Terminal
|
| |
| MD618728 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm "L" Spade |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Mando:MP112033, MP112042 |
|
| Hyundai:36100-32560, 36100-32610, |
Components: |
| 36100-32640 |
MI-C231: Cap Assy |
| |
|
| |
|
| Lester Nos: |
|
| 17217, 17500, 17502, 17503, 17504, 17505, |
|
| 17506, 17689, 17434, 17211 |
|
| |
|
| |
|
| |
|
|
|
|
MI-240
12V, 4-Terminal
|
| |
| M371X53371, SB-512F, SB-533F; SB631, |
Dimensions: |
| SB635 |
Battery Term: M8 x 1.25 |
| Mazda:FE50-18-x10A |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| |
Relay Term: Lead w/ Female Spade |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M1T70485 |
|
| |
Components: |
| |
MI-C240: Cap Assy |
| |
|
| Lester Nos: |
|
| 16708, 17214, 18396 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-242
12V, 4-Terminal
|
| |
| SB676 |
Dimensions: |
| Nissan:23343-42L10, 23343-42L70 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Components: |
| |
MI-C242:Cap Assy |
| Lester Nos: |
WH-M242: Wire Lead Plug |
| 16817 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-242A
12V, 4-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
Components: |
| |
MI-C242A: Cap Assy (Tall) |
| Lester Nos: |
WH-M242: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-245
12V, 4-Terminal
|
| |
| M371X61371, SB-613 , MD611378 |
Dimensions: |
| |
Battery Term:M8��1.25 |
| |
Motor Term:M8��1.25 |
| |
Switch Term:6.35mm"L"Spade |
| 7-690 |
Relay Term:Round Female Pushon |
| 66-8361 |
with 210mm Lead |
| ZM-798 |
|
| |
|
| Starter Nos: |
|
| M003T41285 |
|
| |
Components: |
| |
MI-C245: Cap Assy |
| Lester Nos: |
|
| 16938 |
|
| |
|
| |
|
| |
|
|
|
|
MI-246
12V, 4-Terminal
|
| |
| M371X61571, SB-615 |
Dimensions: |
| Mazda:AM15-18-X10 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm "L" Spade |
| 7-786 |
Relay Term: Lead w/ Female Spade |
| 66-8325 |
|
| ZM-696 |
Components: |
| |
MI-C246: Cap Assy |
| Starter Nos: |
|
| M1T70481, M3T32592, MD034120, |
|
| MD100431 |
|
| |
|
| Lester Nos: |
|
| 16939, 17185, 17596 |
|
| |
|
| |
|
|
|
|
MI-250
12V, 3-Terminal
|
| |
| SB665, U2460 |
Dimensions: |
| AMC:8933002709, 8933003210 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 7-1106 |

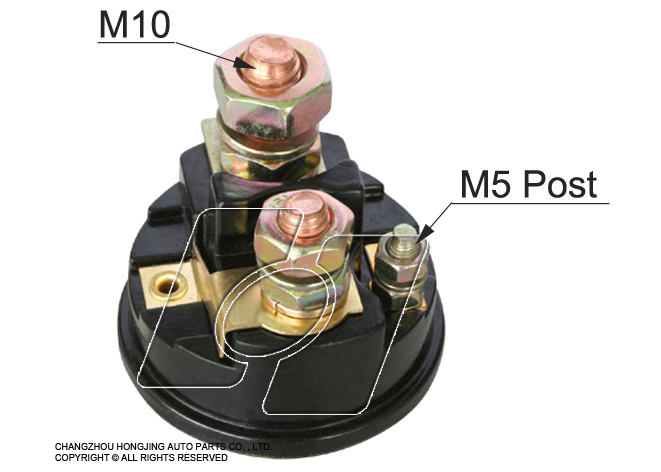

Switch Term: M5 x 0.8 Post |
| 66-8344 |
|
| ZM-795 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M1T73581, M1T74481, M1T74482 |
Components: |
| |
MI-C250: Cap Assy |
| Lester Nos: |
|
| 17046 |
|
| |
|
| |
|
| |
|
|
|
|
MI-251
12V, 3-Terminal
|
| |
| M371X62571, SB625, U2804 |
Dimensions: |
| AMC:8933002708, 8983503655 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |

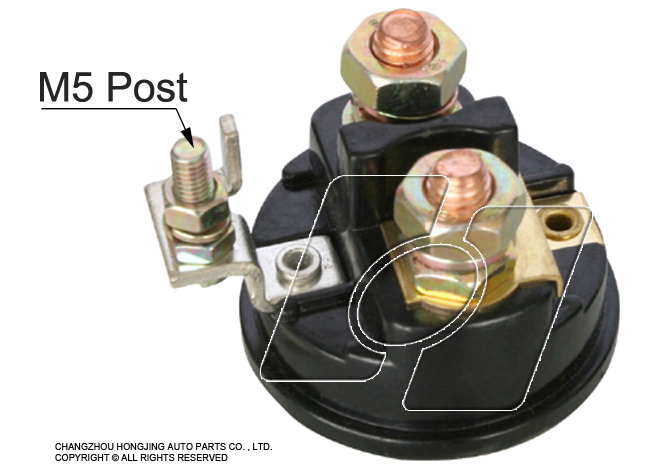

Switch Term: M5 x 0.8 Post |
| 7-668 |
|
| 66-8350 |
|
| ZM-695 |
|
| |
|
| Starter Nos: |
|
| Chrysler:56004934 |
|
| M1T74281, M1T76081, M1T76081ZC, |
|
| M1T76082ZC |
|
| |
Components: |
| Lester Nos: |
MI-C251: Cap Assy |
| 17006, 17564 , 17551 |
|
| |
|
| |
|
| |
|
|
|
|
MI-251A
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Post |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| |
Components: |
| |
MI-C251A: Cap Assy |
| |
|
| Lester Nos: |
|
| 17467 |
|
| |
|
| |
|
| |
|
|
|
|
MI-260
12V, 3-Terminal
|
| |
| |
Dimensions: |
| 66-8365 |
Battery Term: M8 x 1.25 |
| 7-1105 |
Motor Term: M8 x 1.25 |
| ZM-991 |
Switch Term: Male Spade Socket |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Chrysler:4609011, 4609345, 4609345AC |
|
| M1T77777, ZC; M1T77781, ZC; M1T84181 |
Components: |
| M1T84181ZC |
MI-C260: Cap Assy (Tall) |
| |
MI-S260: Switch Termimal Socket |
| Lester Nos: |
|
| 16930, 17461, 17726, 17832 |
|
| |
|
| |
|
| |
|
|
|
|
MI-261
12V, 3-Terminal
|
| |
| |
Dimensions: |
| 7-1104 |
Battery Term: M8 x 1.25 |
| 66-8364 |
Motor Term: M8 x 1.25 |
| ZM-992 |
Switch Term: Male Spade Socket |
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Chrysler:4609059 |
Components: |
| M1T78851ZC |
MI-C261: Cap Assy (Tall) |
| |
MI-S260: Switch Termimal Socket |
| Lester Nos: |
|
| 17559, 17561 |
|
| |
|
| |
|
| |
|
|
|
|
MI-268
12V, 3-Terminal
|
| |
| SB669 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 7-1146 |
Switch Term: 6.35 mm Spade |
| 66-8360 |
|
| ZM-994 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M2T80081, M2T80281, M2T80481, |
Components: |
| M2T84471 |
MI-C268: Cap Assy (Tall) |
| Honda:31200-PY3-004, 31200-PY3-014, |
|
| 31200-PY3-024, 31200-PY3-A01, |
|
| 31200-P5A-A01, 31200-PV1-A03, |
|
| 32100-PV1-A04 |
|
| MHG001, MHG002, MHG003, MHG005, |
|
| MHG006 |
|
| |
|
| Lester Nos: |
|
| 17275, 17432, 17710 |
|
| |
|
| |
|
|
|
|
MI-270S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Components: |
| |
MI-C270S: Cap Assy |
| Lester Nos: |
WH-106XL: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-271S
12V, 3-Terminal
|
| |
| SB-783P |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| 7-1132 |
Motor Term: M8 x 1.25 |
| 66-8345 |
Switch Term: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
Components: |
| M1T74781 |
MI-C271S: Cap Assy |
| |
WH-106L: Wire Lead Plug |
| |
|
| |
|
| Lester Nos: |
|
| 17180 |
|
| |
|
| |
|
| |
|
|
|
|
MI-280
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M1T84981ZC |
|
| Chrysler:56041207, 56041207AB |
|
| |
Components: |
| |
MI-C280: Cap Assy |
| |
MI-S280A: Spade Socket "S" Term. |
| Lester Nos: |
|
| 17754 |
|
| |
|
| |
|
| |
|
|
|
|
MI-281
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| 66-8375 |
|
| |
|
| |
|
| Starter Nos: |
Components: |
| Chrysler:56041012AB, AC; 56041013AC |
MI-C280: Cap Assy |
| M000T83381, M001T79483, |
MI-S281: Spade Socket "S" Term. |
| M001T84381ZC |
|
| |
Note: |
| Lester Nos: |
Reverse "M" & "B" Term. of a MI-282 |
| 17749, 17786, 17799 |
|
| |
|
| |
|
| |
|
|
|
|
MI-282
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| |
|
| |
|
| |
Components: |
| Starter Nos: |
MI-C282: Cap Assy (Tall) |
| M0T84881ZC, M0T91081ZC |
MI-S281: Spade Socket "S" Term. |
| Chrysler:5033067AA, 56041012AC |
|
| |
Note: |
| Lester Nos: |
Reverse "M" & "B" Term. of a MI-281 |
| 17829 |
|
| |
|
| |
|
| |
|
|
|
|
MI-283
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Mitsubishi:M1T86781ZC |
|
| |
|
| |
|
| |
Components: |
| |
MI-C283: Cap Assy (Tall) |
| |
MI-S280A: Spade Socket "S" Term. |
| Lester Nos: |
|
| 17843 |
|
| |
|
| |
|
| |
|
|
|
|
MI-284
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| |
(at 3:00 position, or RH)) |
| |
|
| Starter Nos: |
|
| Mitsubishi:M0T60781 |
Components: |
| Nissan:23300-8J000 |
MI-C284: Cap Assy (Tall) |
| |
MI-S286: Spade Socket "S" Term. |
| |
|
| |
Note: |
| Lester Nos: |
Reverse "M" & "B" Term. of a MI-285 |
| 17835 |
|
| |
|
| |
|
| |
|
|
|
|
MI-284G
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| |
(at 3:00 position, or RH)) |
| |
|
| |
Components: |
| Starter Nos: |
MI-C284: Cap Assy (Tall) |
| Mitsubishi M1T68681 |
MI-S286: Spade Socket "S" Term. |
| Nissan 23300-CA000 |
|
| |
|
| Lester Nos: |
|
| 17863 |
|
| |
|
| |
|
|
|
|
MI-285
12V, 3-Terminal
|
| |
| |
Dimensions: |
| Nissan:23343-9E010 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| |
(at 9:00 position, or LH) |
| 7-1148 |
|
| 66-8372 |
Components: |
| |
MI-C285: Cap Assy (Tall) |
| |
MI-S286: Spade Socket "S" Term. |
| |
|
| Starter Nos: |
Note: |
| M0T85081, M0T87085ZC, M0T90685ZC |
Reverse "M" & "B" of Term. a MI-284 |
| Nissan:23300-9E010, 23300-9E012, |
|
| 23300-8J010 |
|
| |
|
| Lester Nos: |
|
| 17740, 17828, 17833 |
|
| |
|
| |
|
|
|
|
MI-286
12V, 3-Terminal
|
| |
| M371X95275 |
Dimensions: |
| Nissan:23343-0W010 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade Socket |
| 7-1147 |
|
| 66-8371 |
|
| |
|
| Starter Nos: |
|
| M0T60181 |
|
| Nissan:23300-0W010, 23300-0W011 |
|
| |
Components: |
| Lester Nos: |
MI-C286: Cap Assy (Tall) |
| 17683 |
MI-S286: Spade Socket "S" Term. |
| |
|
| |
|
| |
|
|
|
|
MI-287S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug (3:00) |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M0T60186, M0T60187, M0T60187ZC, |
|
| M0T87481ZC |
Components: |
| Nissan:23300-4S100, 23300-4S102, |
MI-C287S: Cap Assy (Tall) |
| 23300-4S103 |
WH-106XL: Wire Lead Plug |
| |
|
| Lester Nos: |
|
| 17738, 17859 |
|
| |
|
| |
|
| |
|
|
|
|
MI-288S
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Wire Lead Plug (9::00) |
| |
|
| |
|
| Starter Nos: |
|
| M2T84371 |
|
| Nissan:23300-60U15 |
|
| |
|
| |
Components: |
| Lester Nos: |
MI-C288S: Cap Assy (Tall) |
| 17696 |
WH-106L: Wire Lead Plug |
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: Male Spade in Socket |
| |
|
| |
|
| |
Components: |
| |
MI-C289: Cap Assy (Tall) |
| Starter Nos: |
|
| Chrysler:56041436AA, 56041436AB, 56041641AC |
Note: |
| Mitsubishi:M1T86883ZC, M1T86782ZC |
"S" Plug Turns 45 degree |
| |
|
| Lester Nos: |
|
| 17839, 17877 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-291
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 66-8369 |
Switch Term: 6.35 mm Male Spade |
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M2T43481, M2T43681, M2T43781, |
|
| M2T43881 |
|
| Onan 191-1949-04, 191-1949-07 |
Components: |
| |
MI-C291: Cap Assy (Tall) |
| Lester Nos: |
|
| 17291 |
|
| |
|
| |
|
| |
|
|
|
|
MI-299
12V, 3-Terminal
|
| |
| M371X94071 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Post |
| 7-1129 |
|
| 66-8366 |
|
| ZM-1-695 |
|
| |
|
| Starter Nos: |
|
| M1T79481, M1T79482 |
|
| |
Components: |
| |
MI-C299: Cap Assy |
| Lester Nos: |
|
| 17564 |
|
| |
|
| |
|
| |
|
|
|
|
MI-300
12V, 3-Terminal
|
| |
| M372X04171, MD611010, SC-041 |
Dimensions: |
| Ford:E3TZ-11390-A |
Battery Term: M8 x 1.25 |
| Isuzu:8-59924-736-0 |
Motor Term: M8 x 1.25 |
| |

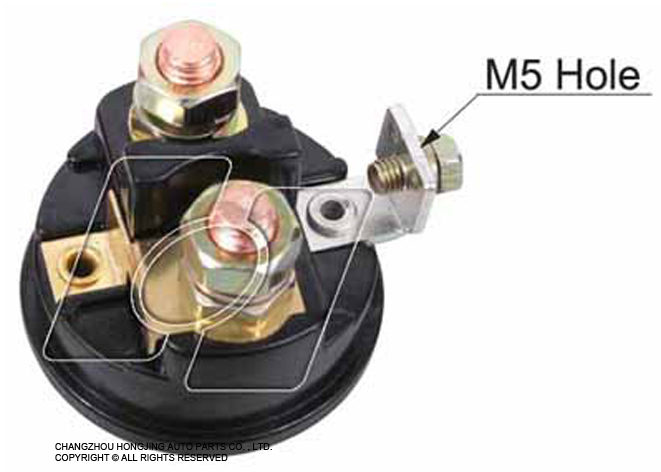

Switch Term: M5 x 0.8 Hole |
| |
With Stright 6.35mm Spade |
| |
|
| |
|
| Starter Nos: |
Components: |
| |
MI-C300: Cap Assy |
| |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-301
12V, 3-Terminal
|
| |
| M372X00171, M372X00371, M372X02471, |
Dimensions: |
| ME700115 |
Battery Term: M8 x 1.25 |
| SC001, SC003, SC004, SC0023, SC024 |
Motor Term: M8 x 1.25 |
| Mazda:R201-24-736, 4872-24-736 |
Switch Term: M5 x 0.8 Hole |
| |
With Stright 6.35mm Spade |
| |
|
| 7-782 |
|
| 66-8310, 66-8315, 66-8338, 66-8378, |
|
| 66-8379 |
|
| ZM-894, ZM-893 |
|
| |
|
| Starter Nos: |
Components: |
| M5T22175, M2T56071, M2T56471, |
MI-C301: Cap Assy |
| M3T64172 |
|
| Mazda:4840-18-400A, 4840-18-400B |
|
| Onan:191-1430, 191-1550, 191-1807, |
|
| 191-1888 |
|
| |
|
| Lester Nos: |
|
| 17008, 18171, 18172, 18394 |
|
| |
|
| |
|
|
|
|
MI-310
12V, 3-Terminal
|
| |
| M372X04171, MD611010, SC041, SC043, |
Dimensions: |
| SC061 |
Battery Term: M8 x 1.25 |
| Ford:E3TZ-11390-A |
Motor Term: M8 x 1.25 |
| Mazda:8599-24-736 |
Switch Term: 6.35 mm Spade |
| |
|
| 7-789 |
|
| 66-8305 |
|
| ZM-891 |
|
| |
|
| Starter Nos: |
|
| M2T54371, M2T60071, M3T66071, |
|
| M3T66074 |
|
| Mazda:8599-18-400A, N211-18-400, |
Components: |
| S203-18-400B |
MI-C310: Cap Assy |
| Ford:E3TZ-11002-C, E3TZ-11002-F |
|
| |
|
| Lester Nos: |
|
| 16744, 16799 , 18398 |
|
| |
|
| |
|
|
|
|
MI-311
12V, 3-Terminal
|
| |
| M371X00471, SC004, SC009 |
Dimensions: |
| MD607634 |
Battery Term: M8 x 1.25 |
| Mazda:0527-24-736, R201-24-736 |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| 7-784 |
|
| 66-8331 |
|
| ZM-893 |
|
| |
|
| Starter Nos: |
|
| M2T54172, M2T56171, M2T56271, |
|
| M2T56971, M2T61071, M2T61171, |
|
| M2T92071 |
|
| |
Components: |
| Lester Nos: |
MI-C311: Cap Assy |
| 16738, 16853, 16854, 16857, 17096, 17556 |
|
| |
|
| |
|
| |
|
|
|
|
MI-344
12V, 3-Terminal
|
| |
| M372X04471, SC-044 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm Spade |
| 7-788 |
|
| 66-8308 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M2T60371, MD081693 |
|
| Ford:E5TZ-11002-A, E57A-11000-AA, |
Components: |
| SAE-751 |
MI-C310: Cap Assy |
| |
|
| Lester Nos: |
|
| 17036, 17017 |
|
| |
|
| |
|
|
|
|

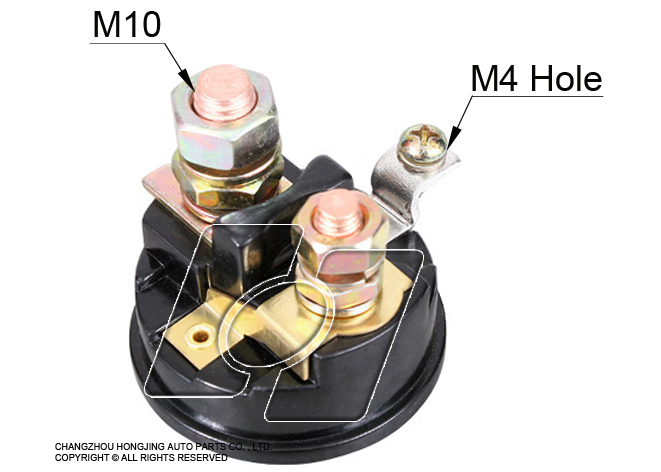

MI-362
12V, 3-Terminal
|
| |
| M372X06271, SC-062 |
Dimensions: |
| GM 22516196 |
Battery Term: M10 x 1.5 |
| |
Motor Term: M8 x 1.25 |
| 66-8316 |
Switch Term: M4 x 0.7 Hole |
| 7-779 |
|
| |
|
| |
|
| Starter Nos: |
|
| M4T66074, M4T66173 |
|
| Delco:22515863, 22523207 |
|
| |
|
| Lester Nos: |
Components: |
| 16744, 16869, 16870, 16871 |
MI-C362: Cap Assy |
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-367
12V, 3-Terminal
|
| |
| M372X06771, M371X45471, SB067, SB454, |
Dimensions: |
| SB569 |
Battery Term: M10 x 1.5 |
| Mazda:4854-24-736 |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Post |
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M4T60173, M5T22175 |
|
| GM:22511854, 22522853 |
|
| |
Components: |
| Lester Nos: |
MI-C367: Cap Assy |
| 16871 |
|
| |
|
| |
|
| |
|
|
|
|
MI-374
12V, 3-Terminal
|
| |
| M372X07471, SC-074 |
Dimensions: |
| Ford:F4TZ-11390-A, SWE5064 |
Battery Term: M10 x 1.5 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Post |
| 7-1099 |
|
| 66-8363 |
|
| ZM-892 |
|
| |
|
| Starter Nos: |
|
| M8T50071, M8T50171 |
|
| F4TZ-11002-A, F4TZ-11002-B, SA817, |
Components: |
| SA819 |
MI-C401: Cap Assy |
| F4TU-11000-AA, F5TU-11000-AA |
MI-M374: Contact Assy |
| |
MI-W374: Contact, Copper |
| Lester Nos: |
|
| 17577, 17578 |
|
| |
|
| |
|
|
|
|
MI-401
12V, 3-Terminal
|
| |
| M372X06971, SC-069 |
Dimensions: |
| Ford:E5PZ-11390-A, F4TZ-11390A |
Battery Term: M10 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| 7-899 |
Switch Term: M5 x 0.8 Post |
| 66-8309 |
|
| ZM-890 |
|
| |
|
| Starter Nos: |
|
| M3T90071, M3T90072 |
Components: |
| Ford:E3TZ-11002-B, E5TZ-11002-B, |
MI-C401: Cap Assy |
| E8TZ-11002-A |
MI-A401B; "B" Stud |
| |
MI-A401M; "M" Stud |
| Lester Nos: |
MI-M401: Contact Assy |
| 16561, 17037, 17577 |
|
| |
|
| |
|
| |
|
|
|
|
MI-402
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M10 x 1.5 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Post |
| |
Ground Term: M5 x 0.8 Post |
| Starter Nos: |
|
| Bobcat 6676957, 6685190, DSL6676957 |
|
| Valeo TM000A28901 |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| 18486 |
|
| |
|
| |
|
| |
|
|
|
|

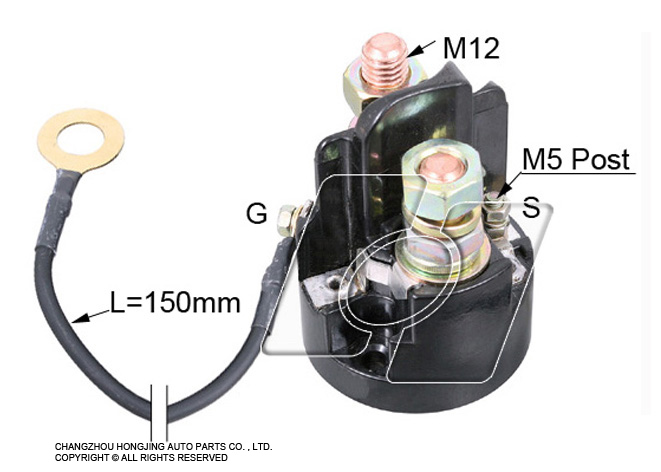

MI-406
12V, 4-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M12 x 1.75 |
| CBS-4592 |
Motor Term: M12 x 1.75 |
| |
Switch Term: M5 x 0.8 Post |
| |
Ground Term: Wire Lead |
| Starter Nos: |
|
| Delco:39MT |
|
| Delco:10461134, 19011500, 8200037 |
Note: |
| Mack:8MJ4298AM |
1. Used on the Starter w/o IMS Switch |
| Mitsubishi:M009T0279, M009T70077, M9T70077 |
2. For Med & HD Trucks ( Up to 2003) |
| M9T70279 |
Freightliner BME900, BME4000, C-2 |
| Volvo:20430285, 85103338 |
C112, F50, F60, F70, F80, FLC 112 |
| |
Mack CH, CV-Mack ASET Series |
| |
Sterling A-Line A9500/AT9500, Etc. |
| Lester Nos: |
Volvo VN |
| 6801, 18970 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-407
12V, 3-Terminal
|
| |
| 10511823, 10512093 |
Dimensions: |
| |
Battery Term: M12 x 1.75 |
| |
Motor Term: M12 x 1.75 |
| |
Switch Term: M5 x 0.8 Post |
| |
|
| |
|
| Starter Nos: |
|
| Delco:38MT |
|
| 10461768, 10461769, 19026027 |
Note: |
| 19026028, 19026029, 19026031, 19026035 |
1. Grounded Base |
| 8200005, 8200007, 8300022, 8200023, 8200025 |
2. MI-408 without Ground Wire |
| 8200075, 8200076, 8200077 |
3. Heavy Duty Trucks with 38MT |
| 8300005, 8300021, 8300024, 8300026 |
Freightliner:FL50, FL60, FL70, |
| |
FL80, FC70, FC80 |
| |
Condor/Caterpiller:3126/C7, ISC/ISL |
| Lester Nos: |
CUMMINS:3.9-30, G3.9, 4B3.9 |
| 6807, 6808, 6809, 6831, 6834 |
|
| |
|
| |
|
|
|
|
MI-408
12V, 4-Terminal
|
| |
| 10511408, 10511807 |
Dimensions: |
| |
Battery Term: M12 X 1.75 |
| |
Motor Term: M12 X 1.75 |
| Starter Nos: |
Switch Term: M5 X 0.8 Post |
| Delco 39MT |
Ground Term: Wire Lead |
| Cummins:3102766, 3102919 |
|
| Delco:10461334, 10461753, 10461755, 10461757 |
Note: |
| 19011505, 19011506, 19011510, 19011513, |
1. Insulated Base |
| 19011526, 19011529, 19011530, 19011531, |
2. Used with IMS #10511414 |
| 8200028, 8200030, 8200031, 8300032, |
(MI-L414) |
| Lester Nos: |
|
| 6802, 6804, 6805, 6806, 6811, 6814, 6816, |
|
| 6817, 6818, 6820, 6822, 6825, 6827, 6828, |
|
| 6830, 6854, 6855 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-409
24V, 4-Terminal
|
| |
| 10511409 |
Dimensions: |
| |
Battery Term: M12 X 1.75 |
| Starter Nos: |
Motor Term: M12 X1.75 |
| Delco 39MT |
Switch Term: M5 X 0.8 Post |
| Cummins:3103305 |
Ground Term: Wire Lead |
| Delco:10461754, 10461756, 10461758, 10461759, |
|
| 19011507, 19011509, 19011511, 19011512, |
Note: |
| 19011522, 19011523, 19011524, 19011527 |
1. Insulated Base |
| 8200021, 8200029, 8200032, 8200034, 8300011, 8300014, |
2. Used with IMS #10511415 |
| Lester Nos: |
(MI-L415) |
| 6803, 6813, 6819, 6826, 6829, 6836, 6852, |
|
| 6853 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-418
24V, 3-Terminal
|
| |
| M371X20571, M371X205372, ME700035 |
Dimensions: |
| SB205 |
Battery Term: M8 X 1.25 |
| |
Motor Term: M8 X 1.25 |
| |
Switch Term: M5 X 0.8 Hole |
| CBS-4585 |
|
| 66-8318 |
|
| |
|
| |
|
| Starter Nos: |
|
| M3T56071, M3T56072, M3T56074, |
|
| M3T56076, M3T56082 |
|
| |
|
| Lester Nos: |
|
| 18242 |
|
| |
|
| |
|
|
|
|
MI-419
24V, 3-Terminal
|
| |
| M371X21571, ME700278 |
Dimensions: |
| SB215 |
Battery Term: M10 X 1.50 |
| |
Motor Term: M8 X 1.25 |
| |
Switch Term: M5 X 0.8 Hole |
| CBS-4586 |
|
| 66-8319 |
Components: |
| |
|
| Starter Nos: |
|
| M3T95071, M3T95082 |
|
| |
|
| |
|
| Lester Nos: |
|
| 18243 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-420
24V, 4-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M10 x 1.50 |
| |
Motor Term: M10 x 1.50 |
| CBS-4568 |
Switch Term: M5 x 0.8 Hole |
| SS-1568 |
Ground: M5 x 0.8 Hole |
| |
With Wire Lead |
| |
|
| |
Note: |
| Starter Nos: |
1. NOT for 38MT and 39MT |
| M373X00171, M373X00371 |
|
| |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-421
12V, 4-Terminal
|
| |
| M357X05671 |
Dimensions: |
| SD057 |
Battery Term: M12 X 1.5 |
| |
Motor Term: M12 X 1.5 |
| SSMI-8713 |
Switch Term: M5 X 0.8 Post |
| 66-8321 |
|
| CBS-4597 |
Note: |
| |
1. NOT for 38MT and 39MT |
| Starter Nos: |
2. Starter used on Mitsubishi-Fuso Med. |
| Mitsubishi:5.5kW OSGR Strs. |
& Heavy Duty Trucks, FK and FM |
| M5T65071, ME77044 |
Series 6.6L & 7.5L (1986-1995) |
| |
|
| |
|
| Lester Nos: |
|
| 17438 |
|
| |
|
| |
|
|
|
|
MI-422
24V, 3-Terminal
|
| |
| M373X04771, ME700054 |
Dimensions: |
| SD048 |
Battery Term: M12 x 1.75 |
| |
Motor Term: M12 x 1.75 |
| CBS-4599 |
Switch Term: M5 x 0.8 Post |
| 66-8322 |
|
| |
|
| |
|
| Starter Nos: |
|
| MI 6.0kW OSGR STRS. |
Note: |
| M5T50076, M5T50176, M5T50177, |
1. NOT for 38MT and 39MT |
| M5T50276, ME039950, ME049182, |
|
| ME049184 |
|
| |
|
| |
|
| Lester Nos: |
|
| 18165 |
|
| |
|
| |
|
| |
|
|
|
|
MI-423
24V, 3-Terminal
|
| |
| M372X10271, M372X10971 |
Dimensions: |
| SC109, ME700984 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: 6.35 mm "L" Spade |
| CBS-4549 |
|
| 66-8323 |
|
| |
|
| |
|
| Starter Nos: |
|
| M2T65271, M2T65272, M3T54072 |
|
| |
Components: |
| |
MI-C301: Cap Assy |
| |
|
| Lester Nos: |
|
| 16873, 18245 |
|
| |
|
| |
|
| |
|
|
|
|
MI-425
24V, 3-Terminal
|
| |
| M372X10171 |
Dimensions: |
| SC101, ME700135 |
Battery Term: M8 x 1.25 |
| Nissan 23343-T9001 |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Hole |
| CBS-4549 |
With Stright 6.35mm Spade |
| 66-8323 |
|
| |
|
| |
|
| Starter Nos: |
|
| M2T65271, M2T65272, M3T54072 |
|
| |
|
| |
|
| |
Components: |
| Lester Nos: |
MI-C301: Cap Assy |
| 16873, 18245 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-440
24V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M10 X 1.5 |
| |
Motor Term: M10 X 1.5 |
| CBS-4569 |
Switch Term: M5 X 0.8 Post |
| 66-8340 |
|
| |
|
| |
|
| Starter Nos: |
|
| M4T95478, M4T95479A, M4T95480 |
|
| Caterpillar:3T2764, 3Y8852 |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-451
24V, 3-Terminal
|
| |
| M371X20671, M371X20672 |
Dimensions: |
| ME700037, SB206 |
Battery Term: M8 x 1.25 |
| Mazda:SE01-24-736 |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Hole |
| |
|
| CBS-4582 |
|
| 66-8351 |
|
| ZM-475 |
|
| |
|
| Starter Nos: |
|
| Mitsubishi:5.0kW OSGR Strs. |
|
| M3T56181, M3T56182, M3T56183, |
|
| M3T58071 |
|
| |
|
| Lester Nos: |
|
| 18239 |
|
| |
|
| |
|
| |
|
|
|
|
MI-458
24V, 4-Terminal
|
| |
| M374X00371, M370X90471, SE003 |
Dimensions: |
| Caterpillar:3Y-4424 |
Battery Term: M10 X 1.50 |
| |
Motor Term: M10 X 1.50 |
| |
Switch Term: M5 X 0.8 Post |
| CBS-4573 |
Ground Term: M5 x 0.8 Hole |
| 66-8358 |
|
| |
|
| Starter Nos: |
|
| M7T03774, M7T03777 |
|
| |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
|
|
|
MI-467
12V, 3-Terminal
|
| |
| M371X22471 |
Dimensions: |
| SB224 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M4 x 0.7 Hole |
| CBS-4584-M9, CBS-4598 |
|
| 66-8367 |
|
| |
|
| |
|
| Starter Nos: |
|
| MI 3.6kW OSGR StRS. |
|
| M3T67281, M3T67282, M3T67283 |
|
| ME015112, ME017087, ME017094 |
|
| |
|
| Lester Nos: |
|
| 18098 |
|
| |
|
| |
|
| |
|
|
|
|
MI-470
24V, 3-Terminal
|
| |
| M373X04071, ME700196 |
Dimensions: |
| SD-041 |
Battery Term: M10 x 1.5 |
| |
Motor Term: M10 x 1.5 |
| |
Switch Term: M5 x 0.8 Post |
| CBS-4570 |
|
| 66-8352 |
|
| |
|
| Starter Nos: |
|
| M4T55076, M4T55077, ME057200, |
|
| ME057350 |
|
| |
|
| |
|
| Lester Nos: |
|
| 17317 |
|
| |
|
| |
|
| |
|
|
|
|
MI-473
12V, 3-Terminal
|
| |
| ME700891 |
Dimensions: |
| 1470-24-736 |
Battery Term: M8 x 1.25 |
| M371x22071; SB-220 |
Motor Term: M8 x 1.25 |
| |
Switch Term: M4 x 0.7 Hole |
| CBS-4584-M3 |
|
| 66-8373 |
|
| |
|
| |
|
| Starter Nos: |
|
| MI 3.5kW OSGR StRS. |
|
| M3T90271, M3T90273, ME087506 |
|
| |
|
| Lester Nos: |
|
| 18099 |
|
| |
|
| |
|
| |
|
|
|
|
MI-480
12V, 3-Terminal
|
| |
| Mazda:SLSK-18-X10 |
Dimensions: |
| M371x22571 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| CBS-4596 |
Switch Term: M5 x 0.8 Hole |
| 66-8380 |
|
| |
|
| |
|
| Starter Nos: |
|
| Mitsubishi:2.2KW ODGR Strs. |
|
| M3T66572, M3T67771 |
|
| Mazda:SLSK-18-400, TMSK-18-400 |
|
| |
|
| |
|
| Lester Nos: |
|
| 18174, 18972 |
|
| |
|
| |
|
|
|
|
MI-481
24V, 3-Terminal
|
| |
| SB201 |
Dimensions: |
| ME700307 |
Battery Term: M8 x 1.25 |
| M371X20171 |
Motor Term: M8 x 1.25 |
| CBS-4581-M9 |
Switch Term: M5 x 0.8 Hole |
| SSMI-8728 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| Mitsubishi:6D10, 6D11, 6D14, 6D15, T654, T656 |
|
| FK115, FM215M, FK103J |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| 18098 |
|
| |
|
| |
|
| |
|
|
|
|
MI-481A
24V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Hole |
| CBS-4581-M3 |
|
| SSMI-8728R |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-483
24V, 3-Terminal
|
| |
| M371X20271, ME700215, SB202 |
Dimensions: |
| 1372-24-736 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Hole |
| |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
|
|
|
MI-485
24V, 3-Terminal
|
| |
| M371X20571, M371X20572, SB205 |
Dimensions: |
| ME700035 |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Hole |
| SSMI-8712 |
|
| 66-8318 |
|
| SS-1541 |
|
| |
|
| Starter Nos: |
|
| M3T56071, M3T56072, M3T56074, |
|
| M3T56082, ME037465, ME037636, |
|
| ME037611, ME037048 |
|
| |
|
| Lester Nos: |
|
| 18242 |
|
| |
|
| |
|
|
|
|
MI-486
24V, 3-Terminal
|
| |
| M371X21571 |
Dimensions: |
| |
Battery Term: M10 x 1.5 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Post |
| 66-8319 |
|
| SSMI-8721 |
|
| |
|
| |
|
| Starter Nos: |
|
| M3T95071, M3T95072, M3T95073, |
|
| M3T95081, M3T95082. ME057350, |
|
| ME057990 |
|
| |
|
| Lester Nos: |
|
| 18243 |
|
| |
|
| |
|
| |
|
|
|
|
MI-488
24V, 3-Terminal
|
| |
| M371XB2171, M371XB2371, ME701443 |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| |
Switch Term: M5 x 0.8 Hole |
| CBS-4588 |
|
| SSMI-8730 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M8T60071, M8T60071C, ME077796 |
|
| |
|
| Lester Nos: |
|
| 18542 |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-488A
12V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M8 x 1.25 |
| |
Motor Term: M8 x 1.25 |
| CBS-4588-M9 |
Switch Term: M5 x 0.8 Hole |
| SSMI-8340 |
|
| |
|
| |
|
| Starter Nos: |
|
| |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-490
12V, 3-Terminal
|
| |
| M372XB0571 |
Dimensions: |
| |
Battery Term: M10X 1.5 |
| |
Motor Term: M10 X 1.5 |
| |
Switch Term: M4 X 0.7 Hole |
| CBS-4590 |
|
| |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| 34MT TYPE 500 |
|
| Delco:19011502 |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
|
|
|
MI-491
24V, 3-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M10X 1.5 |
| |
Motor Term: M10 X 1.5 |
| |
Switch Term: M4 X 0.7 Hole |
| CBS-4591 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| 34MT TYPE 500 |
|
| |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-492
12V, 4-Terminal
|
| |
| |
Dimensions: |
| |
Battery Term: M12 X 1.75 |
| |
Motor Term: M12 X 1.75 |
| |
Switch Term: M5 X 0.8 Post |
| CBS-4592 |
|
| 66-8321 |
|
| |
|
| |
|
| Starter Nos: |
|
| M5T65071, ME77044 |
|
| |
|
| |
|
| Lester Nos: |
|
| 17438 |
|
| |
|
| |
|
| |
|
|
|
|
MI-493
24V, 4-Terminal
|
| |
| M371X05071 |
Dimensions: |
| |
Battery Term: M12 X 1.75 |
| |
Motor Term: M12 X 1.75 |
| |
Switch Term: M5 X 0.8 Post |
| CBS-4593 |
|
| |
|
| |
|
| |
|
| Starter Nos: |
|
| M4T95478, M4T95479, M4T95479A, |
|
| M4T95480 |
|
| Caterpillar:3T2767, 3Y8852 |
|
| |
|
| Lester Nos: |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C101
|
| |
| |
Used On: |
| |
MI-101 |
| |
|
| 66-83200 |
|
| |
|
| |
Note: |
| |
Switch Term: M4 x 0.7 Hole |
| |
With Straight Spade |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C110
|
| |
|
|
|
MI-C111
|
| |
|
|
|
MI-C121
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M |
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C121S
|
| |
| |
Used On: |
| |
MI-121S |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C131
|
| |
|
|
|
MI-C132
|
| |
|
|
|
MI-C140
|
| |
| |
Used On: |
| |
MI-140 |
| |
|
| 66-83202 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-M140 On "R" Terminal |
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C145
|
| |
| |
Used On: |
| |
MI-145 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-M145 On "R" Terminal |
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C169
|
| |
|
|
|
MI-C201
|
| |
| |
Used On: |
| |
Univer Version for MI-211, &MI-231 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Switch Term: M4 x 0.7 Hole |
| |
With Straight 6.35 mm Spade |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C210
|
| |
|
|
|
MI-C210A
|
| |
| |
Used On: |
| |
MI-210A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C211
|
| |
|
|
|
MI-C211A
|
| |
| |
Used On: |
| |
MI-211 |
| |
|
| 66-83203 |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C217
|
| |
| |
Used On: |
| |
MI-217 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
MI-B227 on "B" Terminal |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C218
|
| |
| |
Used On: |
| |
MI-218 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
MI-B227 on "B" Terminal |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220
|
| |
| |
Used On: |
| |
MI-220 |
| 66-83211, 66-83215 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M |
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220A
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M |
| |
Tall Cap |
| |
|
| |
|
| |
|
|
|
|
MI-C220AS
|
| |
| |
Used On: |
| |
MI-220AS |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M |
| |
Tall Cap |
| |
|
| |
|
| |
|
|
|
|
MI-C220ASX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M NOT Soldered |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220AX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M NOT Soldered |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220AXX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Without Wire Harness |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220S
|
| |
| |
Used On: |
| |
MI-220S |
| 66-83209 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220SX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M NOT Soldered |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220X
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M NOT Soldered |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C220XX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Without Wire Harness |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221A
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221AS
|
| |
| |
Used On: |
| |
MI-121S, MI-221AS, MI-271S |
| |
|
| 66-83216 |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221ASX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M NOT Soldered |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221AX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M NOT Soldered |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221AXX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Without Wire Harness |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221F
|
| |
| |
Used On: |
| |
MI-221F |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106F |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221S
|
| |
| |
Used On: |
| |
MI-221S |
| |
|
| 66-83210 |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221SX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-106M NOT Soldered |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221X
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-101M NOT Soldered |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C221XX
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Without Wire Harness |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C226S
|
| |
| |
Used On: |
| |
MI-226S |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
MI-B226 on "B" Terminal |
| |
With WH-106M On "S" Trerminal |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C227S
|
| |
| |
Used On: |
| |
MI-227S |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
MI-B227 on "B" Terminal |
| |
With WH-106M On "S" Trerminal |
| |
Tall Cap |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C230
|
| |
|
|
|
MI-C230A
|
| |
| |
Used On: |
| |
MI-230A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Tall Cap Version of MI-C230 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C230G
|
| |
| |
Used On: |
| |
MI-230G |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With MI-A230G On "B" Terminal |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C231
|
| |
|
|
|
MI-C231A
|
| |
| |
Used On: |
| |
MI-231A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Tall Cap Version of MI-C231 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C240
|
| |
| |
Used On: |
| |
MI-240 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-M140 On "R" Terminal |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C242
|
| |
| |
Used On: |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-M242 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C242A
|
| |
| |
Used On: |
| |
MI-242A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
Tall Cap Version of MI-C242 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C245
|
| |
| |
Used On: |
| |
MI-245 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-M145 On "R" Terminal |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C246
|
| |
| |
Used On: |
| |
MI-246 |
| |
|
| 66-83205 |
|
| |
|
| |
|
| |
|
| |
|
| |
Note: |
| |
With WH-M140 On "R" Terminal |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
MI-C250
|
| |
| | |
